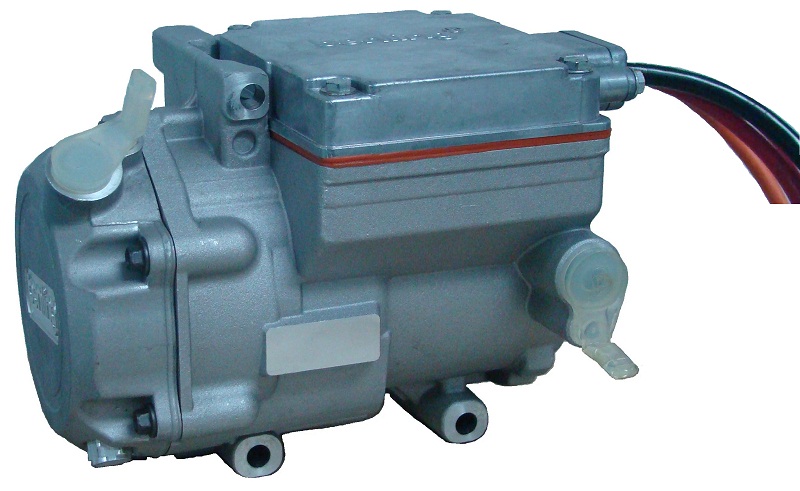

24V 低压直流涡旋压缩机
工作电压：24V
最大功率：2600W
最高转速：6000 RPM
24V DC displacement:24cc rated voltage:24v
rotated speed:1800-6000
dc 24v air compressor
| Performance(DM24A6) | |
| refrigerant capacity(3000 rpm) | 1.89kw /6400 Btu/hr |
| input power | 1.02 KW |
| current | 43A |
| refrigerant capacity(4000 rpm) | 2.58kw /8800 Btu/hr |
| input power | 1.36KW |
| current | 58A |
| refrigerant capacity(6000 rpm) | 4.00kw /13600 Btu/hr |
| input power | 2.16 KW |
| current | 100A |
| test condition | Pd/Ps=1.47/0.196 Mpa(G) SC=5℃ SH=10℃ |
| Usable range | |
| evaporated temperature | 12 °F ~ 70°F |
| condenser temperature | 77 °F ~ 167°F |
| compression ratio | 8.0 MAX |
| refrigerant | R134a |
| start temperature | -26 °F ~ 158 °F |
| working temperature | -26 °F ~ 212 °F |
| storing temperature | -40 °F ~ 221 °F |
| Compressor parameter | |
| discharge capacity | 24.0 cc/rev |
| weight | 5.5kg |
| oil charge | 100cc PVE oil |
| refrigerant capacity | 800cc |
| rotated speed rang | 1800rpm---6000 rpm |
| safety valve pressure | 4.0 Mpa |
| cover protection level | IP67 |
| motor coil temperature | 248°F MAX |
| discharge temperature | 239°F MAX |
| Motor parameter | |
| motor type | PMSM (permanent magnet synchronous motor |
| rated tortue | 3.10 Nm |
| max tortue | refer to diagram |
| Drive parameter | |
| max power | 2400W |
| working frequency | 30HZ-120HZ |
| over heating protection | 212°F |
| low voltage protection | 20V |
| over voltage protection | 31V |
| soft hardware overload | yes |
| control method (common way) | 1, pwm 2,gear 3,can 4----- |
可以为客户定制不同电压及控制信号的产品。
